Safety Operation Procedures and Accident Prevention Measures for Lab Companion High Temperature Ovens
High temperature ovens are widely used in industrial drying, curing, high-temperature aging and other working conditions. With high operating temperature and heavy running load, they are prone to cause burns, fires, explosions, electrical short circuits and other safety accidents. To ensure personnel and equipment safety and standardize operation procedures, these safety operation procedures and accident prevention measures are formulated in accordance with industrial oven application standards.
1. Safety Operation Procedures for High Temperature Ovens
1.1 Pre-Start Safety Inspection
1.1.1 Environment Inspection
Keep the operation area ventilated, dry and tidy. No flammable and explosive materials, corrosive liquids, cartons, debris or other items are allowed within 1.5 meters around the oven. The ground shall be flat and stable, and sufficient space shall be reserved for equipment heat dissipation.
1.1.2 Equipment Status Inspection
Check that the door sealing gasket is intact without damage, and the inner chamber, air duct and heating elements are free of oil, debris and water. Confirm that the temperature sensor, over-temperature protector, fan and emergency stop switch function properly. For explosion-proof ovens, inspect that the gas monitoring, exhaust and pressure relief devices are intact.
1.1.3 Sample Compliance Inspection
It is strictly prohibited to place flammable, explosive, volatile, strong oxidizing or highly corrosive items. Sealed containers and pressurized components shall not be baked directly. Dangerous goods such as lithium batteries and chemical raw materials must be processed in dedicated explosion-proof ovens.
Samples shall be placed evenly without blocking air ducts or touching heating elements, and the loading capacity shall not exceed 1/3 of the effective inner chamber volume.
1.1.4 Power, Water and Parameter Inspection
Confirm that the supply voltage is consistent with the equipment nameplate and the grounding is firm and reliable. For water-cooled models, check that the cooling water flow and quality are normal.
Verify the set temperature, time and program. Operation beyond the rated temperature range of the equipment is strictly prohibited.
1.2 Standard Operation During Operation
• After placing samples, close and lock the chamber door tightly to ensure good sealing.
• Start the equipment according to procedures, and observe whether the temperature rise, fan operation and instrument display are normal, with no abnormal noise, odor or smoke.
• Assign dedicated personnel on duty during equipment operation. Check temperature and alarm information regularly; do not leave the post without permission or sleep on duty.
• Frequent door opening, modification of system protection parameters, and touching of high-temperature inner chamber, sample racks and heating components are strictly prohibited during operation.
• For live or liquid-containing samples, strictly control the load power and standardize wiring to prevent short circuits and liquid leakage.
• In case of over-temperature, alarm or fault prompt, immediately press the emergency stop switch, cut off the main power supply, and restart only after troubleshooting.
1.3 Shutdown and Final Operations
• After testing, stop heating first and keep the fan running to allow the internal temperature to naturally drop below 60°C before opening the door.
• Open the door slowly sideways to release residual heat first. Wear high-temperature resistant insulated gloves when handling samples to prevent scalding.
• Clean up residual debris and water in the inner chamber in a timely manner, wipe the inner chamber with soft cotton cloth, and keep the cabinet dry and clean.
• Turn off the main power and water supply. Drain water from pipelines for water-cooled models. Tidy up tools and samples, and restore the operation area to order.
• Fill in the equipment operation log truthfully, recording running time, temperature parameters, sample information and abnormal conditions.
1.4 Basic Requirements for Operators
• Operators must be professionally trained and qualified before taking post, and be familiar with equipment structure, operation procedures and emergency response methods.
• Wear insulated gloves, goggles and other protective equipment as required during operation. Do not wear loose clothing; tie long hair up to avoid entanglement with equipment.
• Unauthorized personnel are prohibited from approaching or touching the equipment. Warning signs shall be set in the operation area.
2. Prevention Measures for Typical Accidents
2.1 Fire Accident Prevention
• Baking of gasoline, alcohol, thinners, diluents and other flammable and explosive volatile substances is strictly prohibited. If necessary, use explosion-proof ovens with forced exhaust enabled.
• Regularly clean dust, oil and plastic residues in heating tubes, air ducts and fans to prevent heat accumulation and spontaneous combustion.
• Calibrate the independent over-temperature protection device quarterly to ensure automatic power cutoff of heating supply when temperature exceeds the limit.
• Equip dry powder fire extinguishers near the equipment. Water or foam fire extinguishers are prohibited for electrical and high-temperature fires.
• Avoid prolonged high-temperature operation without load to prevent overheating and burnout of heating elements.
2.2 High-Temperature Scald Prevention
• Post obvious "High Temperature Hazard" warning signs on the equipment. Touching the cabinet, door or inner chamber during operation is prohibited.
• Open the door sideways at high temperature: slightly open first for heat dissipation, then fully open.
• Use special high-temperature resistant gloves and clamps for sample handling; bare-handed operation is forbidden.
• Set up a warning area for equipment just shut down to prevent accidental contact and scalding by unauthorized personnel.
2.3 Explosion and Splash Accident Prevention
• Sealed glass bottles, canned liquids and pressurized components are strictly prohibited from direct baking. Open placement and reserved pressure relief space are required.
• For flammable and explosive samples such as batteries, cells and chemical powders, explosion-proof high-temperature ovens must be used, equipped with hydrogen/carbon monoxide monitoring, independent pressure relief and emergency exhaust functions.
• Vacuum ovens shall strictly follow the procedure: "vacuum first, then heat up; cool down first, then break vacuum" to prevent burst caused by excessive internal and external pressure difference.
• Place liquid samples in trays to avoid tilting and leakage, preventing high-temperature splashing injuries.
2.4 Electrical Safety Accident Prevention
• The equipment must be reliably grounded. Regularly inspect the insulation of power cords and terminals to prevent electric leakage and short circuits caused by aging or damage.
• Supply power according to rated power strictly. Unauthorized wiring and overloaded operation are prohibited to avoid tripping or fire.
• Keep the operating environment dry. Do not operate with wet hands or rinse the electric control cabinet with water.
• Keep the emergency stop switch unobstructed. Cut off power immediately in case of electrical abnormality; live maintenance is prohibited.
2.5 Equipment Failure and Damage Prevention
• Establish a hierarchical maintenance system: clean air ducts and filters monthly, calibrate temperature, humidity and safety devices quarterly, and conduct comprehensive inspection of heating, fan and control systems annually.
• Operation over temperature, overload or over weight is strictly prohibited. Forcible modification or disassembly of core components is not allowed.
• Replace worn parts such as sealing gaskets, sensors and heaters with original accessories in a timely manner.
• For long-term shutdown, run without load monthly to maintain component activity and prevent moisture damage.
2.6 Emergency Response Measures
• Over-temperature / Alarm: Immediately press emergency stop, cut off power, close the chamber door, and troubleshoot after cooling.
• Fire Danger: Cut off power immediately, extinguish with dry powder fire extinguisher. Do not open the door to supply oxygen. Alarm promptly if the fire spreads.
• Scald Accident: Rinse the burned area with running clean water immediately. Seek medical treatment in case of severe injury.
• Explosion / Leakage: Evacuate personnel quickly, cut off power and air supply, enhance ventilation, and allow professionals to handle the scene.
• Electric Leakage / Shock: Turn off the main switch immediately. Do not touch the injured person or equipment with bare hands. Administer first aid and contact a professional electrician.
3. Daily Management Requirements
• Organize regular safety training and emergency drills to improve operators’ risk prevention and emergency response capabilities.
• Implement dedicated personnel management, regular calibration and maintenance records for equipment to ensure safety devices remain effective at all times.
• Develop special safety plans separately for non-standard working conditions and dangerous goods baking; illegal operations are strictly prohibited.
• Contact the official after-sales service of Lab Companion promptly for complex equipment failures. Unauthorized disassembly by non-professionals is prohibited.
Against the backdrop of rapid evolution and upgrading in the global high-end manufacturing sector, the entire industry is shifting toward an irreversible trend of specialized segmentation and precision customization. Cutting-edge sectors including semiconductor chip manufacturing, new energy lithium battery and photovoltaic production, biomedicine, precision electronics, and LCD panel processing show drastically differentiated and highly stringent requirements for key parameters of oven equipment, such as temperature control accuracy, cleanliness, vacuum degree, and operational safety. Customization and scenario-specific precision have become the core competitive demands driving the global industrial oven market forward. Relevant industry research data reveals that the combined demand for professional thermal processing ovens in the semiconductor and new energy sectors alone accounts for more than 60% of the total market share, and traditional single-parameter general-purpose ovens are completely unable to meet the diverse, multi-process, and high-standard application needs of modern refined industrial production.
With decades of deep cultivation and technical accumulation in the global thermal processing equipment field, Lab Companion has built a comprehensive and systematic product matrix, as well as industry-leading precise parameter matching and customization capabilities. The brand perfectly aligns with the global trend of refined industrial scenario development, focusing on solving targeted pain points in thermal processing for different industries, and delivering highly adaptable, reliable, and efficient full-process thermal treatment solutions to customers in high-end manufacturing fields worldwide.

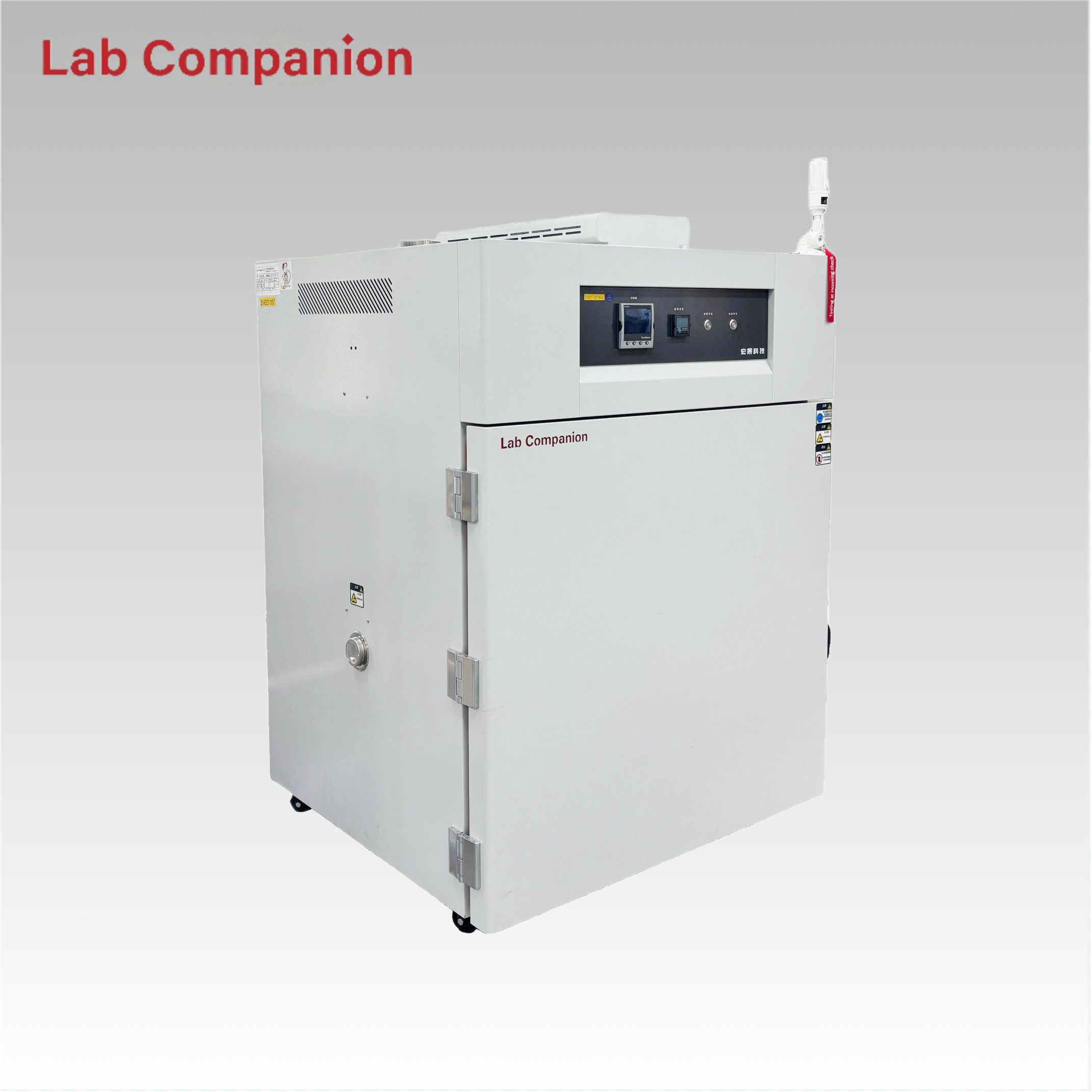

I. Scenario Segmentation: The Core Logic of Oven Classification
Oven classification is never based on superficial indicators such as appearance size or volume, but is fundamentally rooted in actual application scenarios and specific process production requirements — these two dimensions form the core logic of scientific oven categorization. Any classification standard that is detached from real production and application scenarios lacks practical guiding significance, and cannot help enterprises select the most suitable equipment or maximize production efficiency.
As global high-end manufacturing continues to refine and upgrade, the classification boundaries of industrial and laboratory ovens have become increasingly clear and standardized. After long-term market validation and industry optimization, ovens are mainly divided into four core categories, each designed for exclusive application scenarios and process targets:
• Basic General-Purpose Ovens
• Cleanroom Dust-Free Ovens
• Vacuum & Oxygen-Free Ovens
• Special-Function Ovens
Each of these four categories corresponds to clear and distinct application needs and process standards, a classification logic that is fully consistent with Lab Companion’s global product layout and R&D direction. Its full range of ovens precisely covers all these four major categories, seamlessly supporting all scenarios from small-batch laboratory research and development, sample testing, and pilot experiments to large-scale industrial mass production, fully covering the entire industrial chain of thermal processing.
II. Basic Scenarios: Adaptation Priorities for Laboratory & Industrial General Models
1. Laboratory Scenarios
Laboratory applications focus on small-batch sample processing, high-precision experimental data, and flexible multi-scenario testing, serving universities, scientific research institutes, corporate R&D centers, and third-party testing institutions. The core requirements for laboratory ovens include user-friendly operation, stable and precise temperature control, strong compatibility with various sample types, and no interference with experimental results.
Lab Companion laboratory ovens feature:
• Temperature range: RT ~ 300°C
• Temperature accuracy: ±0.5°C
• Temperature uniformity: ≤ 2°C
• SUS304 stainless steel interior
• Dual-air duct forced circulation for uniform heating
• Multi-program preset storage
With these professional configurations and stable performance, Lab Companion laboratory ovens are highly recognized in the global scientific research field, and are widely used for routine and precision experiments including sample drying, material curing, high-temperature sterilization, aging testing, and thermal stability analysis in universities and research institutes.
2. Industrial General Scenarios
Industrial general production scenarios prioritize high throughput production efficiency, long-term stable continuous operation, and low maintenance costs, as industrial production lines require equipment to withstand high-intensity daily use and maintain consistent performance without frequent downtime.
Lab Companion industrial ovens adopt:
• PID + solid-state relay temperature control
• Adjustable variable-frequency heating power
• Thickened stainless steel chamber
• 24-hour continuous operation capability
• Optional double front/rear doors and pipeline integration
These targeted industrial designs make Lab Companion industrial ovens perfectly suitable for enterprise pilot production lines and large-scale mass production lines, strongly supporting the current trend of large-scale, efficient, and automated industrial manufacturing, and helping enterprises improve overall production efficiency and product stability.
III. Special Working Conditions: Core Parameter Adaptation for Specialized Ovens
The rapid development and technological breakthrough of global high-end manufacturing have driven a sharp surge in demand for special working condition scenarios, where conventional ovens cannot meet the extreme performance requirements, and specialized customized ovens have become essential core equipment for these high-value industries.
1. Clean & Dust-Free Environments
Industries such as semiconductor wafer manufacturing, LCD flat panel production, biomedical consumables processing, and precision electronic component assembly require ultra-clean production environments to avoid product defects caused by micro-dust particles, with a mandatory Class 100 (ISO Class 5) clean level for core processing areas.
Lab Companion cleanroom and class-100 ovens provide:
• Imported HEPA filters with 99.99% efficiency @ 0.3μm
• Argon-welded, dust-free construction
• Mirror-finish SUS304 stainless steel interior
• Temperature range: RT+20 ~ 300°C
• Temperature accuracy: ±0.1°C
These professional clean oven configurations effectively eliminate dust contamination risks and ensure zero impurity interference during thermal processing, making them ideal for high-precision processes such as semiconductor silicon wafer baking, photoresist curing, biomedical material sterilization, and precision electronic component drying.
2. Explosion-Proof & Flammable Applications
For the processing of flammable and explosive raw materials and semi-finished products in chemical engineering, new energy battery material production, coating manufacturing, and adhesive curing industries, operational safety is the top priority. Lab Companion explosion-proof safety ovens comply strictly with the national standard GB/T 32710.10-2016 for explosion-proof equipment, equipped with professional explosion-proof electrical components, standardized pressure relief vents, and multi-layer safety interlock protection systems, which can effectively monitor and eliminate potential safety hazards in real time, ensuring safe and stable operation even when handling high-risk materials.
3. Vacuum & Oxygen-Sensitive Processes
For oxidation-prone materials such as metal powder, precision alloy parts, sensitive electronic components, and lithium battery core materials, direct heating in an aerobic environment will cause oxidation, discoloration, and performance degradation, seriously affecting product qualification rate. Lab Companion vacuum ovens achieve an ultra-high vacuum level ≤ 5 Pa with excellent sealing performance, while dedicated oxygen-free ovens can reduce the internal oxygen content to below 50 ppm within just 30 minutes, creating a completely oxygen-isolated thermal processing environment and reliably solving the long-standing industry problem of material oxidation during heating.
IV. Key Selection Principles: Scenario-Oriented Core Considerations
Under the global trend of scenario refinement in manufacturing, oven equipment selection should always prioritize accurate matching between core parameters and actual scenario needs, rather than blindly pursuing high-end configurations or excessive parameter indicators that lead to unnecessary cost waste and equipment underutilization.
With profound industry insight and in-depth understanding of segmented scenario pain points across global high-end manufacturing, Lab Companion integrates precise parameter adaptation with flexible personalized customization services, completely breaking the limitations of the traditional "one-size-fits-all" equipment model. Whether customers need small precision desktop ovens for laboratories, large-scale vertical or horizontal ovens for industrial mass production, or specialized units for extreme special working conditions, Lab Companion provides fully tailored solutions by flexibly adjusting core parameters such as temperature range, internal chamber volume, cleanliness level, vacuum degree, temperature control mode, and external dimensions according to specific customer process requirements, establishing itself as a trusted and preferred brand in the segmented global high-end manufacturing thermal processing market.
1. Reliability Testing of Automotive Sensors
Core Function: Verify performance stability of sensors under extreme temperature conditions, screen defective products, and ensure driving safety.
Specific Applications:
Temperature cycle test: Simulate engine compartment temperature fluctuations of -40℃~150℃ to test sensor signal accuracy and response speed.
High-temperature aging: Sustained 500–1000 hours at a constant temperature of 100–150℃ to accelerate material aging and evaluate long-term reliability.
Damp-heat test: 1000-hour test under 85℃/85% RH environment to verify moisture resistance and circuit stability.
Case: An ABS wheel speed sensor manufacturer adopted precision ovens for high-temperature aging with temperature control accuracy of ±0.3℃, ensuring product detection accuracy of ±0.1km/h and significantly improving overall vehicle safety performance.
2. Curing and Drying of Automotive Electronic Components
Core Function: Ensure firm soldering of electronic components, remove moisture, enhance insulation, and improve product reliability.
Key Applications:
PCB solder paste curing: Precise temperature control at 80–120℃ to ensure uniform and firm soldering and prevent cold solder joints/short circuits.
Electronic module sealing: Curing of sensor potting adhesive to ensure waterproof and dustproof performance.
Wire harness insulation treatment: Remove moisture and enhance insulation to prevent circuit failures.
Case: A vehicle ECU manufacturer used fully sealed precision ovens with temperature control accuracy of ±0.5℃, ensuring stable operation of electronic components under high-temperature and high-humidity conditions and reducing product failure rate by 40%.
3. Aging and Performance Testing of Rubber Seals
Core Function: Evaluate heat resistance of rubber materials, predict service life, and prevent leaks and malfunctions caused by seal failure.
Key Applications:
Hot air aging test: 7–90 days of testing at 70–200℃ to measure hardness change, tensile strength retention rate, and compression set.
Heat resistance evaluation of O-rings/gaskets: Verify temperature resistance of FKM and other materials in fuel systems.
Seal strip aging resistance: 168-hour test of automotive door and window seal strips at 100℃±2℃ to ensure long-term sealing performance.
Case: An automotive engine seal manufacturer used precision ovens for aging tests with temperature uniformity of ±1℃, accurately evaluating material service life and reducing engine oil leakage failure rate by 60%.
4. Coating Curing of Automotive Parts
Core Function: Ensure uniform coating curing, enhance adhesion, wear resistance, and corrosion resistance.
Key Applications:
Headlight cover UV coating curing: 2-hour constant temperature at 80℃ to ensure coating hardness and transparency.
Brake pad adhesive curing: Curing at 150–200℃ to ensure firm bonding between friction materials and back plates.
Automotive wheel hub spray coating curing: Ensure uniform and firm coating to improve appearance and durability.
Case: An automotive lamp manufacturer adopted precision tunnel ovens for UV coating curing with temperature uniformity of ±1℃, increasing production capacity by 50% while ensuring compliance of product light transmittance and hardness.
5. Heat Treatment of Automotive Metal Parts
Core Function: Improve metal microstructure, enhance strength, toughness, and wear resistance to meet stringent requirements of automotive parts.
Key Applications:
Aging annealing of aluminum alloy die castings: 150–250℃ to eliminate internal stress and improve dimensional stability and strength.
Heat treatment of bearings/gears: Improve material microstructure to enhance wear resistance and fatigue strength.
Spring tempering: Precise temperature control to ensure stable elastic performance.
6. Other Key Applications
Interior part shaping: Softening and shaping of seat/instrument panel leather at controlled temperatures to ensure aesthetics and durability.
Composite material processing: Hot-press forming of carbon fiber components to ensure material strength and stability.
Automotive tire production: Preheating before tire vulcanization to ensure molding quality and uniformity.
The industrial multi-layer oven is a high-efficiency heating equipment designed for industrial mass production. Its core structural innovation lies in the vertical stacking of multiple independent chambers, which effectively breaks the space limitation of traditional single-layer ovens. It is widely suitable for mass drying and curing needs in electronics, automotive, new materials and other fields. Compared with ordinary heating equipment, it has significant advantages in space utilization, temperature control accuracy and production efficiency. Its core features and application fields are as follows:
I. Core Features
1. High Space Utilization: Adopts vertical stacking of multiple independent chambers, abandoning the "horizontal space occupation" limitation of traditional single-layer ovens. The effective heating space can be increased by 3-5 times under the same workshop floor area. This design is particularly suitable for the compact layout needs of modern industrial workshops, enabling larger batch workpiece processing in limited space and directly reducing the site rental and planning costs per unit capacity.
2. Precise and Uniform Temperature Control: Each chamber is independently equipped with a high-precision temperature control module and a closed-loop circulating air system, with temperature fluctuation strictly controlled within ≤±1℃. It also supports differentiated temperature and time parameter settings among different chambers for simultaneous processing of workpieces with multiple process requirements. The internal hot air forms 360o three-dimensional circulation through the deflector, completely eliminating temperature dead zones in the chamber and ensuring a temperature uniformity of ≥95%, which fundamentally guarantees the consistency of processing quality for batch workpieces and avoids product performance differences caused by temperature variations.
3. Energy Efficiency: The multi-layer shell is filled with high-density thermal insulation cotton and equipped with high-temperature resistant sealing strips to form a tight thermal insulation structure, reducing heat loss by 20%-30% compared with traditional single-layer ovens. Some mid-to-high-end models are also equipped with waste heat recovery devices, which can reuse the heat of hot air discharged from the chamber for air intake preheating, further improving energy conversion efficiency and meeting the energy-saving and consumption-reducing needs of industrial production.
4. Easy and Controllable Operation: Equipped with an industrial-grade PLC touch control system, supporting storage and batch calling of hundreds of sets of process parameters. With IoT modules, remote real-time monitoring and operation are achievable, significantly reducing manual intervention costs. The independent start-stop design of multi-layer chambers can flexibly adapt to order volume changes, facilitating small-batch and multi-batch flexible production. It also comes standard with over-temperature sound and light alarm, circuit overcurrent protection, door safety interlock and other devices, fully complying with industrial safety standards such as GB 50016 to eliminate potential production safety hazards.
II. Main Application Fields
1. Electronic Manufacturing: One of the core equipment for electronic component processing, widely used in PCB solder mask curing, moisture-proof drying of capacitors, resistors and other electronic components, and high-temperature heat treatment after chip packaging. Its precise temperature control capability can strictly match the heat resistance threshold of electronic components, effectively avoiding component performance degradation or damage caused by temperature fluctuations, and ensuring the stability and service life of electronic finished products.
2. Hardware and Auto Parts: Suitable for degreasing and drying of fasteners and stamping parts, removing residual oil on the workpiece surface through stable temperature. It is also used for shaping and drying of automotive interior parts (such as plastic panels, fabric cushions) and curing of surface coatings (such as electrophoretic paint, powder coating) on metal parts. Under high temperature, it can enhance the adhesion between the coating and the substrate, improving the wear resistance and corrosion resistance of the part surface.
3. New Materials and Composites: Meets the shaping and drying needs of carbon fiber products and glass fiber cloth during the molding process, ensuring uniform release of internal stress of materials through gradient temperature rise and improving the mechanical strength of finished products. It is also suitable for low-temperature drying of lithium battery electrodes, removing moisture from electrodes in a precise temperature-controlled environment of 40-60℃, avoiding the impact of moisture on battery electrochemical performance and safety performance, and ensuring the quality of new energy products.
4. Food and Pharmaceutical: Special models with 304 stainless steel inner tank and food-grade seals can be used for drying and preservation of food auxiliaries (such as dehydrated vegetables, baking raw materials) and sterilization and drying of pharmaceutical packaging materials (such as aluminum-plastic composite films, pharmaceutical glass bottles).
In summary, the core advantage of the industrial multi-layer oven lies in the precise balance between production capacity, space occupation and processing quality. Its high-efficiency, energy-saving and flexible characteristics perfectly meet the core needs of modern industrial mass production, and it has become an indispensable heating equipment for various industries to improve production efficiency and ensure product quality.
In modern industrial manufacturing, industrial precision ovens are key "temperature artisans". They are widely used in electronics, aerospace, automotive, medical and other fields, providing stable performance and reliable quality for products. Gaining an in-depth understanding of their principles not only clarifies the scientific logic of industrial production, but also helps practitioners use equipment efficiently to improve benefits.
(I) Heating System: The Source of Heat
The heating system is the "heat source core" of the oven. The thermostat controls the thyristor through signals to adjust the heater power and regulate heat output: full power is supplied when the temperature is much lower than the set value, power gradually decreases when approaching the set value, and output stops when the set value is reached. This is energy-efficient and achieves high temperature control precision.
(II) Air Circulation System: The Messenger of Heat Transfer
Composed of a blower motor, extended shaft and multi-wing fan blades, the air circulation system is critical for heat transfer. The motor drives the wind wheel to rotate and form air flow, which is evenly delivered to all areas of the oven through optimized air ducts, avoiding dead corners and temperature differences. Hot air fully contacts materials during circulation to achieve rapid and uniform heating, which is essential for high-precision processes such as electronic chips and optical lenses.
(III) Electrical Control System: The Core of Precise Operation
The electrical control system is the core control unit of the oven. The Q8 series electrical control system adopts full-touch operation with a control precision of 0.01 level and supports multiple sensor adaptations. It has 100 built-in processes (50 steps per group), including EVT, cold output and transmission output functions. The DO channel features safe isolation and arc suppression design, enabling convenient, accurate and reliable operation that adapts to diverse control scenarios.
Future Outlook: Technological Innovation Leads Development
In the future, industrial precision ovens will focus on three major innovation directions: intelligence, energy conservation and environmental protection, and special process adaptation, continuously innovating to shape a new industrial future.
